Arduino Due + Adafruit Ultimate GPS

Example code of connecting Arduino Due with the Adafruit Ultimate GPS. For a while the Adafruilt Ultimate GPS 66-channel was my workhorse. It's LED flashes once per second until it has found a GPS fix, then it flashes once every 15 seconds.

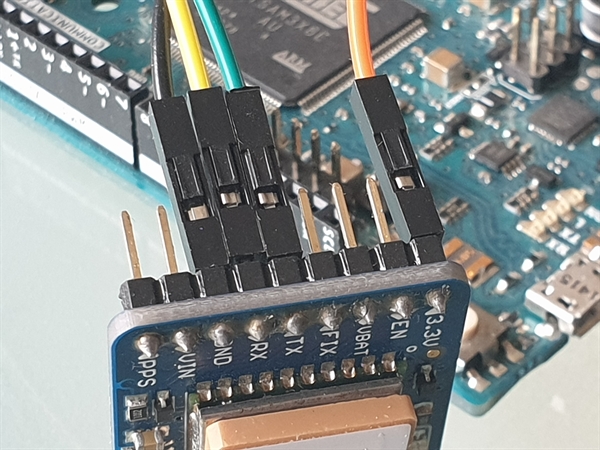

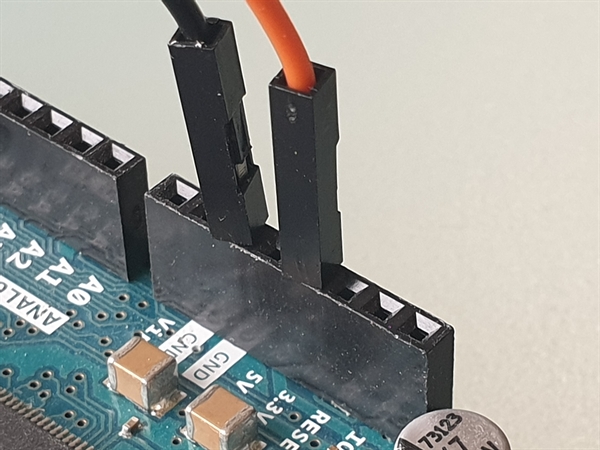

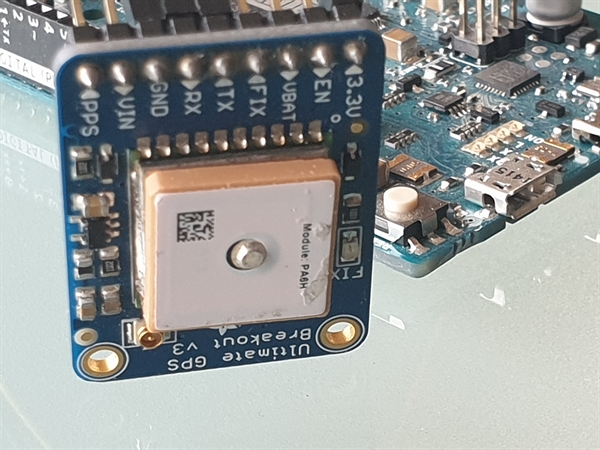

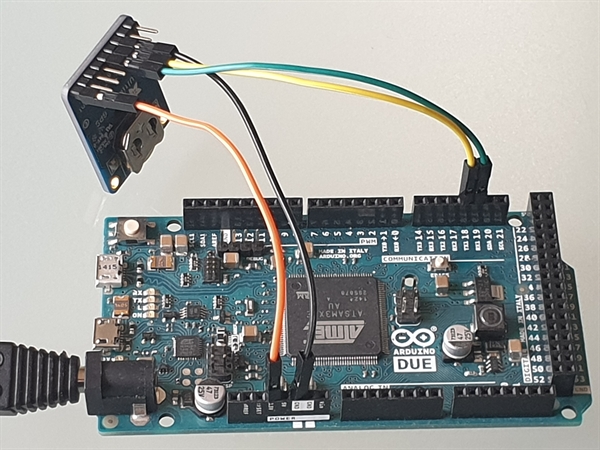

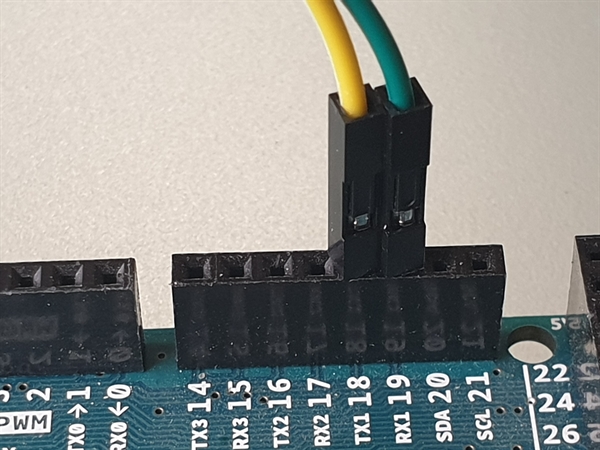

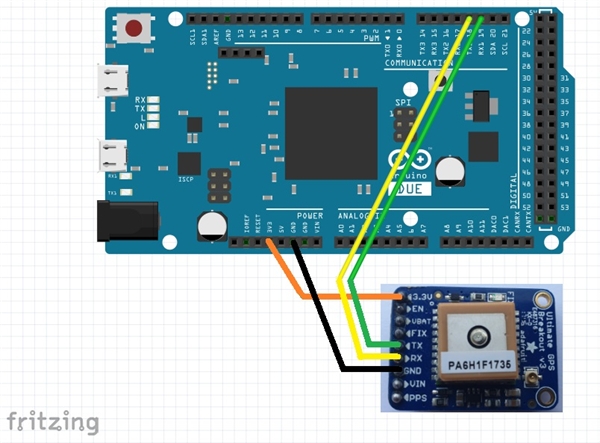

Connections

Description Colour Arduino Due GPS module
Power 3v Orange 3.3v 3.3v
Ground Black GND GND
Arduino Transmit Yellow pin 18 GPS RX pin
Arduino Receive Green pin 19 GPS TX pin

Video

Please click thumbnail image to start the video

Video on Arduino Due + Adafruit Ultimate GPS    iconSerial.png    volts33.png

Excel

Excel  GPS checksum example
